Car Styles
 |
Elevette® 500
Metal frame with acrylic panels
(Machine Room elevator only)
|
 |
Elevette® 400
Solid wood with hardwood veneer raised or recessed center panels
(Machine Room or Machine Roomless elevator)
|
 |
Elevette® 300
Smooth hardwood center panels with crown, chair, baseboard and picture molding
(Machine Room or Machine Roomless elevator)
|
 |
Elevette® 200
Smooth hardwood veneer panels with square, flush corners
(Machine Room or Machine Roomless elevator)
|
Elevette® 100
Choose from thousands of Formica® or Wilsonart® laminates for covering walls.
(Machine Room or Machine Roomless elevator)
|
 |
|
Shaft Configuration
 |
 |
No Shaft
Inclinator’s machine room elevators can be installed in an “open” environment – running up the center of open winding stairs, next to stairways and where no stairs exist. Elevette 500 car style is used for no shaft elevators.
|
In Shaft
Most Inclinator elevators operate within an enclosed shaft. Occasionally, shafts are designed into projects and saved for future elevator installation. Prior to use as an elevator shaft, it can be used as closets stacked on top of each other. Elevette 400, 300, 200 and 100 car styles are used for in-shaft elevators.
|
|
Drive Systems
Machine Room Elevators
 |
 |
Cable Drum Drive
- Quietest in the industry
- Patented monorail guiding system
- 500 lb. and 750 lb. capacity
- Can accommodate car size up to 12 sq. feet.
- Emergency battery lowering, and/or soft start (optional)
|
Hydraulic Drive
- Smooth, quiet ride
- Patented monorail guiding system
- 750 lb. and 950 lb. capacity
- Can accommodate car size up to 15 sq. feet.
- Emergency battery lowering
|
|

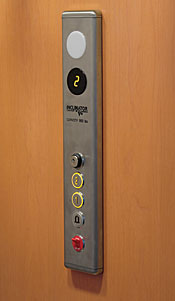

Car Operating Stations for Machine Room Elevators
|
 |
 |
|
Each elevator includes a Car Control Station. The faceplate will vary depending on finish selected and the number of elevator landings. A Remote Station is placed on each landing by the elevator door.
|
Machine Room Elevators
| Historically, home elevators included a machine room that housed the drive system. This was a closet-sized room that was usually located at the lowest point of the elevator. Inclinator offers a drive system that is housed entirely in the hoistway (elevator shaft). This eliminates the need for a machine room, thereby taking up less square footage and reducing construction and installation costs. |
 |
Gear Motor Chain Drive
- Simple and reliable
- Chain for raising/lowering
- 950 lb. capacity
- Can accommodate car size up to 15 sq. feet.
- Double rail chassis
- Emergency battery lowering
- Microprocessor-based controller
- Self-diagnostic
|
|
Car Operating Stations for Machine Roomless Elevators
|
 |
 |
|
Each elevator includes a Car Control Station. The faceplate will vary depending on finish selected and the number of elevator landings. A Remote Station is placed on each landing by the elevator door.
|
|
