Telecab (Savaria Concord)

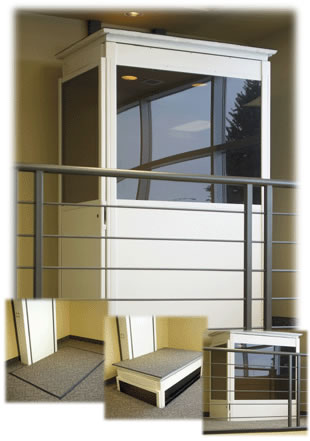

Maximize your living space and save on installation costs with this two-stop elevator that does not require a lift well. The Telecab is perhaps best known as the "vanishing elevator" because you can send it back up or down once you are done and it will "disappear" into the floor or ceiling, leaving you with additional space to use.

The Telecab is ideally suited for the mobility impaired, as it features many safety options such as an emergency battery-lowering device and an in-cab telephone. Continuous pressure push buttons ensure a smooth, stable and safe ride.





Standard Equipment

  • 500 lbs (227 kg) capacity
  • Maximum travel of 16’(4,877mm)
  • Travel speed 25 feet/min (0,07m/s) approx.
  • Cab dimensions: 30" x 46" x 78"  (762 x 1,168 x 1,981 mm)
  • 115 VAC relay logic operation(115 VAC up direction and 12 VDC down)
  • Automatic battery recharging system (115 VAC)
  • Low voltage controls
  • 2:1 chain hydraulic drive system
  • Roller guide shoes
  • Keyed call / send stations
  • Continuous pressure directional push buttons
  • Non-skid platform surface
  • Beige or white acrylic urethane paint finish
  • ¼" (6 mm) plexiglass windows
  • Front only car access
  • 34" x 59" (864 x 1,499 mm) minimum floor cutout
  • 90" (2,286 mm) minimum overhead at top landing
  • Three piece modular cab design and 8 ft modular guide rail for easy access on site
  • Time delay for automatic door lock system
  • Conforms to ASME A17.1

Specifications

  • Rated Load - 500 lbs (227 kg)
  • Rated Speed - 25 fpm (0.07 m/s)
  • Cab Dimensions - 30"W x 46" L x 78"H (762 x 1,168 x 1,981 mm)
  • Levels Serviced - 2
  • # of Openings - 1 or 2
  • Maximum Travel - Up to 23'
  • Power Supply - 110 VAC, 20 amps, 1 phase
  • Car Access - Enter/Exit same side or front/rear
  • Drive System - 2:1 Roller chain hydraulic
  • Motor - 110 VAC, 1.5 HP/Screw type
  • Standard Color - Almond Beige or White
  • Backed by the Savaria Concord Limited Warranty which covers the repair or replacement of any defective parts for a period of 36 months from date of shipment


Optional Equipmet

  • Battery operation in up and down direction
  • Electro-mechanical door lock and open door sensor
  • Under panel safety sensor
  • 32" x 54" (813 x 1,372 mm) cab dimensions
  • Front/back access
  • Two door concept
  • Custom cab dimension
  • Custom color
  • Door closer
  • Remote hand control
  • Door mount or side mount car control station
  • In-cabin automatic Doors and Operators
